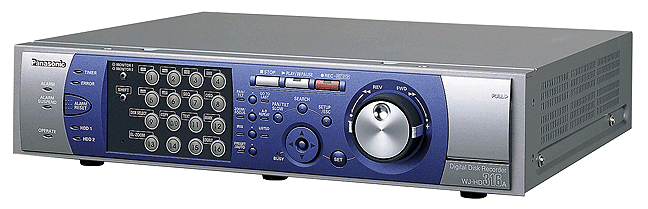

| The WJ-HD300A DVR Series has more features and higher hard drive capacities. The DVR is configured with 16 channels and a 1500 GB hard drive. With optional expansion units, overall storage capacity is up to 7.5 Terabytes. The "A" Series allows camera setup over the network and offers 120 images per second in SIF mode. Up to four system controllers can be used in cascade mode. Each controller can control and view individual camera groups (1-16, 17-32, 33-48, 49-64). The new copy feature eliminates a programming step by automatically assigning the start time of the copy function as either the record stop time or record list selection point. Individual cameras can be programmed for the greatest number of images per second without any restrictions by the number of image programmed by other modes. Features - Alarm Function
- Motion Detection
- Network Compatible
- New algorithm divides entire screen into high and low frequency elements to reduce artificial distortion and noise compared to conventional compression
- Simultaneous Live/Rec./Playback/Network.
- 16 independent recording profiles
- Improved picture quality by optimized compression algorithm.
| SPECIFICATIONS | | Maximum Recording Rate | 120 ips | | Network | RJ-45 (x 1) | | Video Input/Output | BNC (x 16 input, 16 output) | | Audio Input/Output | 4/2 | | Alarm Port | 8-channel relay (Max. 24V 1A) | | Ethernet Port | 10 Base-T/100 Base-TX (RJ-45) | | Power Source | 120 V AC, 60 Hz | | Power Consumption | 75 W | | Operating Temperature | +5°C - +45°C (41°F - 113°F) | | Weight | 21 lbs |
|
