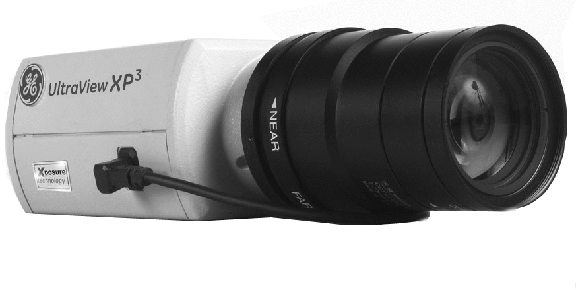

| GE’s UltraView KTC-XP3 is the next generation in wide dynamic range cameras. The UltraView XP3 uses the latest XPosure™ image analysis technology to provide worldleading performance in challenging lighting conditions combined with dramatically improved low-light performance. XPosure technology optimizes the exposure for each pixel on the sensor, showing details in shadows and highlights. This performance allows every detail to be captured accurately even in the most difficult lighting conditions such as lobbies, loading docks, retail applications and ATMs with bright backlight. FEATURES - Next-generation XPosure technology
- Improves on original UltraView camera’s low-light performance and color balance
- Uses less power
- Only camera on the market that continuously optimizes for its environment in real-time
- 520 horizontal lines of resolution
- Dynamic range 95 dB (typical),120 dB (max)
- Optional progressive scan output
- Accepts manual, DC, and video autoiris lenses
- Preset modes optimized for various environments
- 5-button on-screen display interface
| SPECIFICATIONS | | Image Sensor | 1/3" sensor with GE XPosure technology | | Resolution | 520 TV Lines | | Minimum Illumination | 0.5 lux @ f1.2, 30 IRE | | Lens Mount | C / CS Mount | | Power Supply | 12 VDC or 24 VAC | | Power Consumption | 3W | | Pixels | 720(H) x 540(V) | | Scanning System | 525/60 (NTSC); 625/50 (PAL) | | Auto Gain Control | AGC on/off, fully programmable | | Back Light Comp. | Selectable | | S/N Ratio | 52 dB | | Video Output | VBS 1.0 Vp-p | | Operational Temp. | 14° to 140°F (-10° to 60°C) |
|
